The Safe Flange Gasket

ANSI flange gaskets with a built-in material identification tag. Know what's in your line with quick, at-a-glance identification that streamlines every step from the receiving dock to final inspection. Easy installation with no pinch-point injury risk.

Find a distributor near you See how it works

How it works

Every Safe Flange Gasket carries a tag with a code that identifies its material. The tag stays visible outside the flange for the life of the joint.

  1. Receiving

    Check the material at the dock by reading the tag. No guessing from color, no smelling the gaskets, no digging for packing slips.

  2. Installation

    Hold the gasket by its tag to line it up with the bolt holes. Installers never put their fingers between the flanges, which eliminates pinch-point injuries.

  3. Inspection

    Post-installation, inspectors can confirm at a glance that the gasket is the correct material.

Garlock 5500 gasket with tag 55
Garlock 5500 · Tag 55

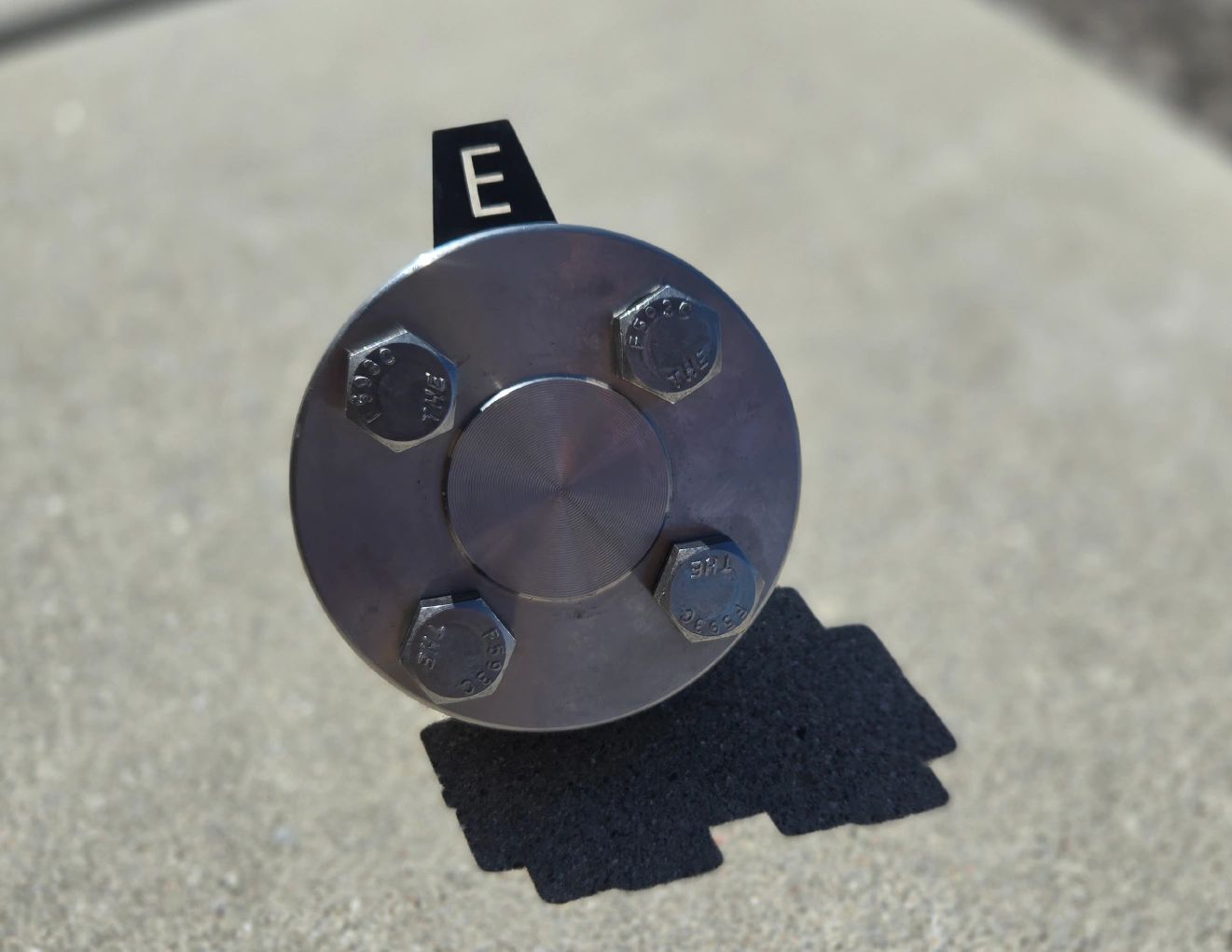

Installed flange with an EPDM gasket tag marked E showing above the bolts
EPDM · Tag E
Installed flange with a Garlock 3000 gasket, tag 30 showing above the bolts
Garlock 3000 · Tag 30
Installed flange with a Viton gasket tag marked V showing above the bolts
Viton · Tag V

Materials

Cut from premium material

We cut every Safe Flange Gasket from sealing materials made by the industry's leading brands.

GarlockAuthorized distributor
TeaditAuthorized distributor
WARCOAuthorized distributor

Material tag codes

150# and 300# flange gaskets. Every tag is stamped with the code for its material.

Rubber
TagMaterial
EEPDM
PPeroxide Cured EPDM
61EPDM NSF-61
VViton
FFKM
BBuna-N
NNeoprene
Non-asbestos
TagMaterial
30BLUE-GARD® Style 3000
32BLUE-GARD® Style 3200
34BLUE-GARD® Style 3400
37BLUE-GARD® Style 3700
55Garlock Style 5500
99Garlock Style 9900
NATeadit NA1001
PTFE / ePTFE
TagMaterial
35Gylon® Style 3500
10Gylon® Style 3510
40Gylon® Style 3540
45Gylon® Style 3545
04Gylon® Style 3504
0XGylon® Style 3500EPIX
70Teadit 1570
PTVirgin PTFE

*For a full list of materials, call JB Gasket at 928-500-1365.

Using a material that's not listed here? We'll bring it in and tag it for you.

Material verification

Rubber tested in-house with FT-IR

We test rubber material in-house with a Bruker ALPHA II, a compact, laptop-sized Fourier Transform Infrared (FT-IR) spectrometer. It reads the infrared fingerprint of each rubber sample and matches it against an aerospace-grade reference library to confirm exactly what the material is.

Instrument
Bruker ALPHA II
Type
Compact FT-IR spectrometer
Tests
Rubber materials
Library
Aerospace-grade reference library
The Bruker ALPHA II FTIR spectrometer on a desk in the JB Gasket shop, with the JB Gasket logo on the window behind it
Our Bruker ALPHA II in the shop in Wickenburg
